The inductor, a seemingly simple coil of wire, plays a pivotal role in the intricate world of electronics. Its fundamental purpose lies in its ability to store energy within a magnetic field and, crucially, to resist changes in the electric current flowing through it. This inherent property makes the inductor an indispensable component in a vast array of electronic circuits, enabling functions that range from smoothing power delivery to shaping complex signals.
Understanding the purpose of an inductor unlocks a deeper appreciation for its significance in modern technology. From the power supplies that keep our devices running to the filters that clean up unwanted noise, and the resonant circuits that enable wireless communication, the inductor’s unique characteristics are fundamental to the operation and efficiency of countless electronic systems we rely on every day.

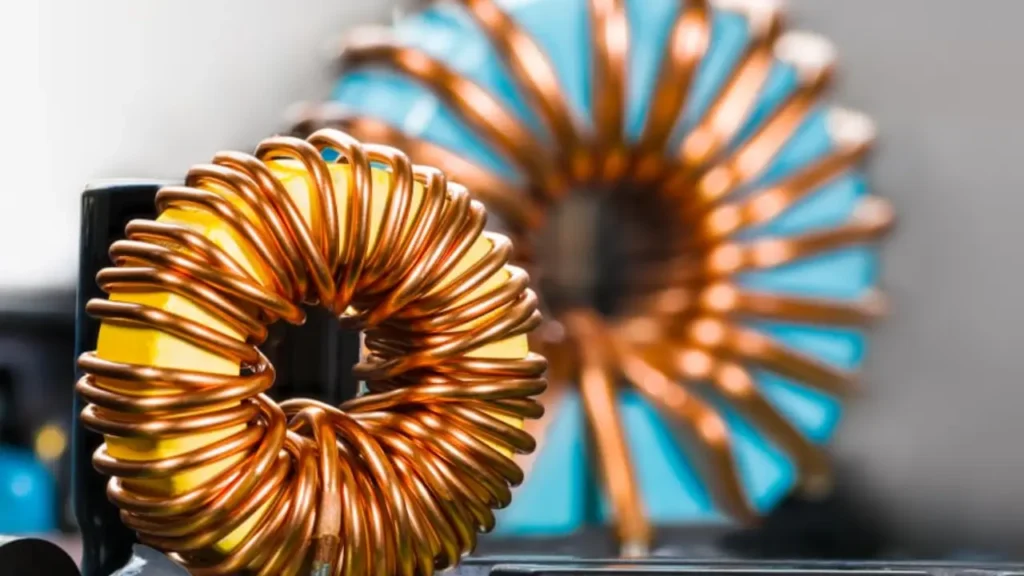

Purpose of Inductor
The inductor, seemingly a simple coil of wire, plays a pivotal role in the intricate world of electronics. Its fundamental purpose stems from its unique ability to store energy in a magnetic field when current flows through it and to oppose any change in that current.
This inherent characteristic makes the inductor an indispensable component, enabling a wide array of crucial functions within electrical circuits, contributing significantly to the operation and stability of countless electronic devices.
Opposing Changes in Current
At its core, the primary purpose of an inductor is to resist any variation in the electric current passing through it. This opposition arises from Faraday’s law of induction and Lenz’s law. When the current through an inductor attempts to increase, the changing magnetic field it generates induces a voltage (back EMF) that opposes this increase. Conversely, if the current tries to decrease, the collapsing magnetic field induces a voltage that attempts to maintain the current flow. This inherent property is crucial for smoothing out current fluctuations, preventing abrupt changes that could harm other components or disrupt circuit operation.
This ability to resist current changes makes inductors vital in applications where a stable current flow is required. For instance, in power supplies, inductors help to minimize current ripple, ensuring a consistent and clean power delivery to sensitive electronic components. They also play a crucial role in protecting circuits from sudden current surges or spikes that could potentially damage delicate semiconductors or other elements. The inductor acts as a buffer, absorbing and releasing energy to maintain a more consistent current profile within the circuit.
Storing Energy in a Magnetic Field
Another fundamental purpose of an inductor is its capacity to store energy in the form of a magnetic field. When current flows through the inductor’s coil, a magnetic field is established around it, and energy is stored within this field. The amount of energy stored is directly proportional to the inductance of the coil and the square of the current flowing through it (E=21LI2). This stored energy can be released back into the circuit when the current decreases or the magnetic field collapses.
This energy storage capability is essential in various applications, particularly in power electronics. In switched-mode power supplies, inductors act as temporary energy reservoirs, efficiently storing energy during one part of the switching cycle and releasing it during another to regulate voltage and current levels. This allows for efficient power conversion and helps to stabilize the output. Similarly, in resonant circuits, inductors work in conjunction with capacitors to store and release energy alternately, creating oscillations at a specific frequency.
Filtering and Shaping AC Signals
Inductors also serve the crucial purpose of filtering and shaping alternating current (AC) signals due to their frequency-dependent impedance. The impedance of an inductor is given by ZL=jωL, where ω is the angular frequency and L is the inductance. This relationship shows that the impedance of an inductor increases with frequency. Consequently, inductors offer low impedance to low-frequency signals (including DC) and high impedance to high-frequency signals.
This frequency-selective property makes inductors invaluable in filter circuits. By strategically combining inductors with capacitors and resistors, engineers can design low-pass filters (allowing low frequencies to pass), high-pass filters (allowing high frequencies to pass), band-pass filters (allowing a specific range of frequencies to pass), and notch filters (attenuating a specific range of frequencies). These filters are essential in audio equipment, communication systems, and power supplies to remove unwanted noise, isolate desired signals, and shape the frequency response of electronic systems.
Inductive Sensors
Beyond their direct circuit applications, inductors form the fundamental sensing element in various types of inductive sensors. These sensors operate based on the principle that the inductance of a coil changes when a ferromagnetic or conductive material is brought into its magnetic field. This change can be detected and correlated to the proximity, position, or movement of the object. Inductive proximity sensors are widely used in industrial automation for non-contact detection of metal parts, in security systems to detect the opening or closing of doors and windows, and even in some traffic light systems to sense the presence of vehicles.
Furthermore, variable reluctance sensors, commonly used to measure rotational speed in automotive and industrial applications (like crankshaft or camshaft position sensors), also rely on inductors. As a toothed ferromagnetic wheel rotates near a coil, the changing magnetic reluctance of the path alters the inductance of the coil, generating a signal proportional to the speed of rotation. These inductive sensing technologies are valued for their robustness, reliability in harsh environments, and ability to operate without direct physical contact.
Electromagnetic Actuators and Relays
Inductors are the driving force behind numerous electromagnetic actuators and relays, converting electrical energy into mechanical motion or switching actions. In solenoids, a type of linear actuator, current flowing through a coil creates a magnetic field that pulls a movable plunger. Solenoids are used in a vast array of applications, from controlling valves in hydraulic and pneumatic systems to actuating locks and latches in automotive and household devices.
Similarly, electromechanical relays utilize an inductor to create a magnetic field that attracts a conductive armature, causing electrical contacts to either close or open. Relays serve as electrically controlled switches, allowing low-power circuits to control high-power loads or to provide electrical isolation between different parts of a system. They are found in everything from automotive control systems and household appliances to industrial automation and telecommunications equipment. The reliability and ability to switch significant currents make relays essential in many electrical and electronic systems.
Energy Harvesting
In emerging fields, inductors are playing a role in energy harvesting technologies. These systems aim to capture ambient energy from sources like mechanical vibrations, electromagnetic radiation, or magnetic fields and convert it into usable electrical energy. Inductors, due to their ability to interact with magnetic fields and generate voltage through Faraday’s law of induction, are key components in many inductive energy harvesting devices.
For example, vibrational energy harvesters often use a moving magnet near a coil to induce a current. Similarly, ambient RF energy harvesting systems employ inductors as part of the antenna and rectifier circuits to capture and convert electromagnetic waves into DC power. While still largely in development and niche applications, inductive energy harvesting holds promise for powering small electronic devices and sensors autonomously, reducing the need for batteries and wired power sources in the future.

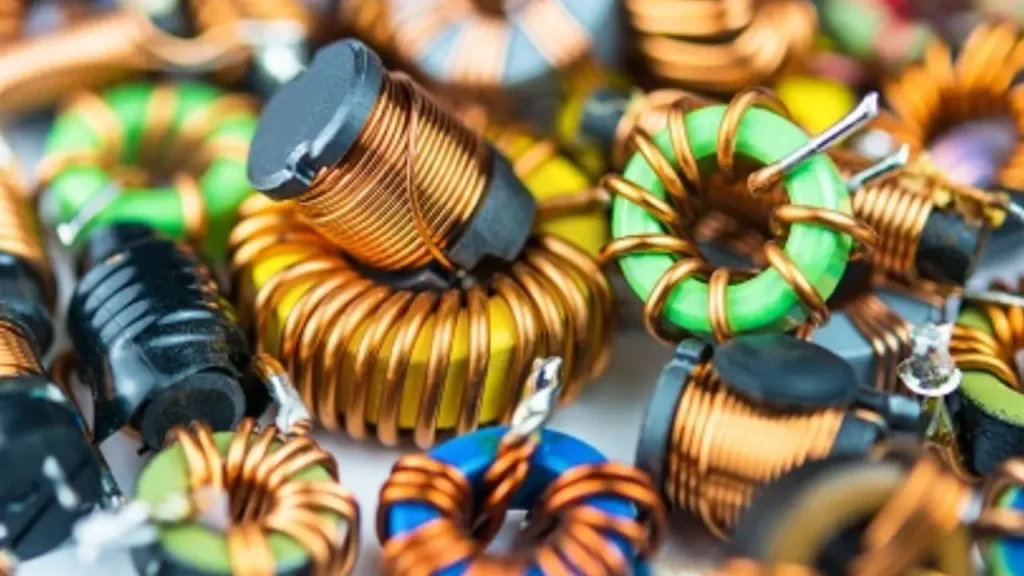

Function of Inductor
The function of an inductor in an electronic circuit is multifaceted, stemming from its fundamental electromagnetic properties. At its core, an inductor is designed to exploit the relationship between electricity and magnetism, exhibiting a unique behavior in response to changing currents. This behavior allows it to perform several key functions that are essential for the operation and stability of a wide range of electronic devices. Let’s explore the primary functions of an inductor in more detail.
Opposing Changes in Current
The primary function of an inductor is its inherent ability to resist any change in the flow of electric current through it. This opposition arises directly from the fundamental principles of electromagnetism, specifically Faraday’s law of induction and Lenz’s law. When the current passing through an inductor varies, the resulting change in the magnetic field it produces induces a voltage (electromotive force or EMF) across the inductor.
This induced voltage always acts in a direction that opposes the change in current that caused it. If the current is increasing, the induced EMF will be in the opposite direction, trying to reduce it. Conversely, if the current is decreasing, the induced EMF will be in the same direction, attempting to maintain the current flow. This opposition to current change is the core of the inductor’s functionality and underlies many of its applications in electronic circuits.
This characteristic of opposing current changes makes inductors invaluable for smoothing out current fluctuations and stabilizing circuits. In scenarios where a constant current is desired, an inductor can help to filter out AC components or transient spikes. For example, in power supplies, inductors work to reduce current ripple, ensuring a more stable and consistent power delivery to sensitive electronic components. This inherent resistance to current variation also plays a crucial role in protecting circuits from sudden surges or drops in current, acting as a buffer that absorbs and releases energy to maintain a more uniform current flow.
Storing Energy in a Magnetic Field
Another crucial function of an inductor is its ability to store energy in the form of a magnetic field. When an electric current flows through the inductor’s coil, a magnetic field is created around it, and energy is stored within this field. The amount of energy stored is directly proportional to the inductance (L) of the coil and the square of the current (I) flowing through it, as described by the equation E=21LI2. This stored magnetic energy can be released back into the circuit when the current decreases or the magnetic field collapses.
This energy storage capability is fundamental to the operation of many electronic systems, particularly in power electronics. In switched-mode power supplies (SMPS), inductors act as temporary energy reservoirs, efficiently storing energy during one phase of the switching cycle and releasing it during another to regulate voltage and current levels.
This allows for efficient power conversion and helps to stabilize the output voltage. Similarly, in resonant circuits, inductors interact with capacitors, alternately storing energy in their magnetic field and releasing it to the capacitor’s electric field, creating oscillations at a specific frequency. This energy storage and release mechanism is key to the function of tuned circuits used in radio communication and other applications.
Providing Frequency-Dependent Impedance
A significant function of an inductor is to provide a frequency-dependent impedance to alternating current (AC) signals. The impedance of an ideal inductor is given by the formula ZL=jωL, where j is the imaginary unit, ω is the angular frequency of the AC signal (ω=2πf, with f being the frequency in Hertz), and L is the inductance in Henrys. This equation reveals that the impedance of an inductor is directly proportional to the frequency of the AC signal.
This frequency-dependent impedance allows inductors to selectively impede or pass signals of different frequencies. At low frequencies (approaching DC, where ω is close to zero), the impedance of an inductor is low, allowing these signals to pass relatively unimpeded. Conversely, at high frequencies, the impedance becomes large, effectively blocking or attenuating these signals.
This characteristic makes inductors essential components in filter circuits. By combining inductors with capacitors and resistors, various types of filters, such as low-pass, high-pass, band-pass, and notch filters, can be designed to shape the frequency response of electronic systems, removing unwanted noise or isolating specific frequency bands for signal processing and communication.
What Does an Inductor Do in an AC Circuit
When an inductor is placed in an AC circuit, its behavior is significantly different from its behavior in a DC circuit. This is because AC voltage and current are constantly changing direction and magnitude, leading to unique interactions with the inductor’s magnetic field.
Here’s a breakdown of what an inductor does in an AC circuit:
Opposition to Changing Current (Inductive Reactance)
In an AC circuit, the current is continuously changing, and an inductor opposes these changes. This opposition to the change in AC current is called inductive reactance (X<sub>L</sub>). Unlike resistance, which opposes current flow in both DC and AC circuits, reactance only opposes changes in current.
Formula: Inductive reactance is calculated using the formula X<sub>L</sub> = 2πfL, where:
- X<sub>L</sub> is the inductive reactance (measured in ohms).
- f is the frequency of the AC signal (measured in hertz).
- L is the inductance of the inductor (measured in henries).
Frequency Dependence: This formula shows that inductive reactance is directly proportional to the frequency of the AC signal.
- At low frequencies, the inductor offers low reactance, allowing current to flow relatively easily.
- At high frequencies, the inductor offers high reactance, impeding the current flow.
Back EMF: The opposition to current change is due to the inductor’s ability to generate a “back EMF” (electromotive force). As the AC current changes, the magnetic field around the inductor also changes, inducing a voltage that opposes the change in current.
Phase Shift Between Voltage and Current
Inductors introduce a phase shift between the voltage and current in an AC circuit. In a purely inductive AC circuit:
- Voltage Leads Current: The voltage across the inductor leads the current through it by 90 degrees (π/2 radians).
- ELI: A common mnemonic to remember this relationship is “ELI” (Voltage E leads Current I in an inductor L).
This phase shift occurs because the inductor’s voltage is proportional to the rate of change of the current, not the current itself. When the current is changing most rapidly (at the zero crossings of the AC waveform), the voltage across the inductor is at its peak. Conversely, when the current is at its peak (and its rate of change is momentarily zero), the voltage across the inductor is zero.
Energy Storage and Release
Inductors in AC circuits continuously store and release energy.
- Energy Storage: As the current through the inductor increases, the magnetic field around it builds up, and the inductor stores energy in this magnetic field.
- Energy Release: As the current decreases, the magnetic field collapses, and the inductor releases the stored energy back into the circuit.
This energy storage and release cycle occurs with each cycle of the AC waveform. In a purely inductive circuit, the inductor does not dissipate any energy; it only stores and releases it. However, in real-world inductors, some energy is lost due to the resistance of the wire and other factors.
In essence, an inductor in an AC circuit acts as a dynamic element, opposing changes in current and introducing a phase shift between voltage and current. These characteristics make inductors essential components in various AC circuit applications, such as filters, oscillators, and power supplies.
Conclusion
The inductor’s fundamental purpose—to oppose changes in current and store energy in a magnetic field—underpins its vital role across a vast spectrum of electronic applications. From smoothing power supplies and filtering signals to enabling resonant circuits and electromagnetic actuation, its unique properties are indispensable for modern technology. Understanding the core purpose of an inductor unlocks a deeper appreciation for its significance in circuit design.
The versatility of inductors allows engineers to manipulate electrical energy in creative and essential ways, contributing to the stable operation and efficient performance of countless devices we rely on daily. Whether it’s ensuring clean power delivery, isolating desired frequencies, or generating precise oscillations, the inductor stands as a testament to the power of fundamental electromagnetic principles in practical applications.
