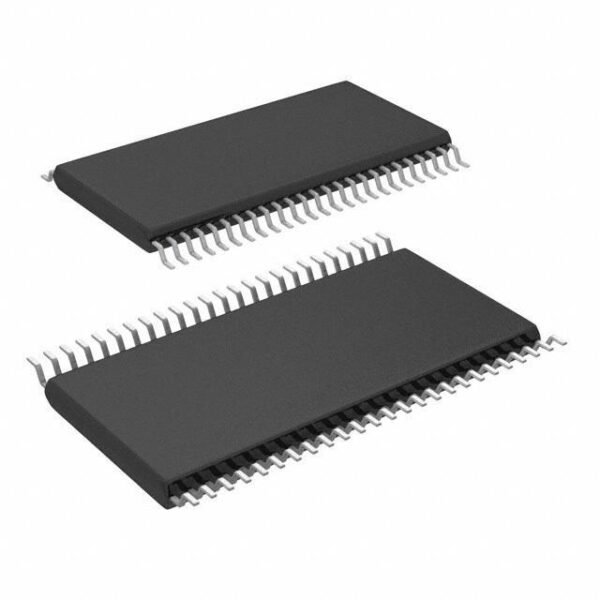

SN74AVC16T245DGGR

Description

The SN74AVC16T245DGGR is a high-quality, dual-supply transceiver product from Texas Instruments, a leading global semiconductor company. This device is designed with state-of-the-art technology to provide an exceptional performance in managing voltage translation in mixed voltage systems. It is engineered to deliver an efficient, reliable, and cost-effective solution for a wide range of applications. The SN74AVC16T245DGGR is a 16-bit, dual-supply bus transceiver that uses two separate configurable power-supply rails. It is equipped with a DIR pin to control the transmission direction and an output-enable (OE) input for controlling the device’s 3-state outputs. The A port tracks the VCCA pin supply voltage, while the B port tracks the VCCB pin supply voltage. This allows for translation between voltages as low as 1.2V and as high as 3.6V. One of the key features of the SN74AVC16T245DGGR is its ability to provide 8 kV of ESD protection. This is a significant feature that ensures the device’s durability and longevity, even in harsh operating conditions. The device also comes with a latch-up performance exceeding 100 mA per JESD 78, Class II, which further enhances its robustness. This Texas Instruments product is also designed with a bus hold on the data inputs, eliminating the need for external pull-up or pull-down resistors. Moreover, the SN74AVC16T245DGGR is optimized for low power consumption, making it an eco-friendly solution for your voltage translation needs. The SN74AVC16T245DGGR comes in a TSSOP (DGG) Reel of 2500, making it suitable for mass production. It operates over the extended temperature range of -40°C to 85°C, offering flexibility and reliability in various operating conditions. In conclusion, the SN74AVC16T245DGGR from Texas Instruments represents a blend of advanced technology, robust performance, and exceptional reliability. It is a testament to Texas Instruments’ commitment to delivering high-quality, innovative solutions that cater to the evolving needs of the electronics industry. Whether you’re designing a new system or upgrading an existing one, this device offers a versatile and efficient solution for voltage translation.
