ADS1274IPAPR

Description

The ADS1274IPAPR from Texas Instruments is a high-performance, quad-channel, 24-bit analog-to-digital converter (ADC) designed for applications that demand excellent dynamic performance and high-precision measurements. This ADC is part of Texas Instruments’ ADS127x family and is ideal for industrial data acquisition, medical imaging, audio testing, and instrumentation that require high-resolution signal processing.

Key Features

• High Resolution:With its 24-bit resolution, the ADS1274IPAPR offers an exceptional level of granularity, making it suitable for capturing very small signal variations in detail.
• Quad-Channel Input:The device features four simultaneously-sampled differential inputs, providing flexibility for multi-channel applications without the need for external multiplexing.
• High Data Rates:It supports data rates up to 105k samples per second per channel, allowing for real-time data acquisition and processing in demanding scenarios.
• Excellent Dynamic Performance:The ADC boasts a high signal-to-noise ratio (SNR) and low total harmonic distortion (THD), ensuring accurate and clean signal conversion.
• Flexible Power Supply:The ADS1274IPAPR operates on a 5V analog supply and a 1.8V to 5V digital supply, accommodating a variety of system power schemes.
• Programmable Gain:The built-in programmable gain amplifier (PGA) allows for gain settings from 1 to 12, enabling the ADC to adapt to different signal levels.
• Temperature Range:This device is operational over an extended industrial temperature range, making it reliable in various environmental conditions.

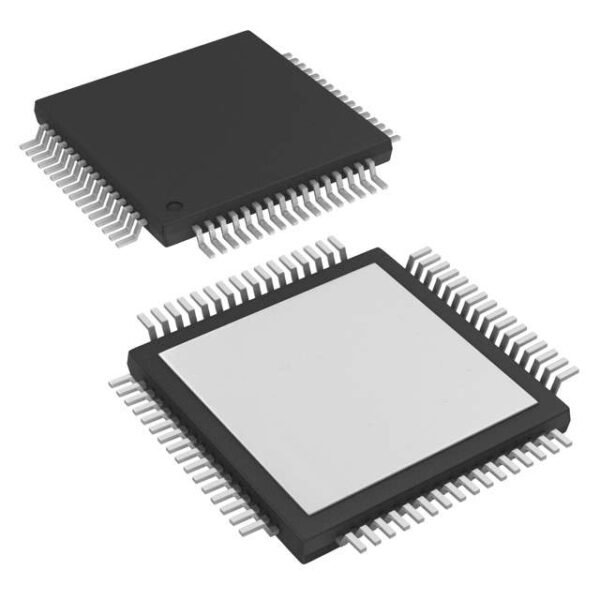

• Package:It comes in a 64-TQFP (10×10) package, which is suitable for space-constrained applications.

Applications

The ADS1274IPAPR is versatile and can be used in a wide range of applications. Its precision and speed make it an excellent choice for:

• Industrial control systems
• Medical imaging equipment
• Scientific instrumentation
• Seismic data acquisition systems
• High-fidelity audio equipment
• Test and measurement systems

Overall, the ADS1274IPAPR ADC by Texas Instruments is a robust and reliable component that meets the needs of professionals looking for precise and high-speed data conversion in their electronic designs.
